Especificaciones:

Processor / System Bus

Intel®Xeon® Processor Scalable Family

Generation

4th/5th

Core Logic

Intel® C741 Chipset

Memory

Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS

* Refer to www.asus.com/support for more information

Expansion Slots

Up to 3+1 PCIe slot
1 x OCP 3.0 or PCIe G5 x16 FHFL
1 x PCIe G5 x16 FHFL
1 x PCIe G5 x8. LP (Internal)
1 x PCIe G5 x16, LP

Storage

12x2.5” NVMe/SATA/SAS* hot-swap bay
(HBA/RAID is required to support SATA/SAS hard drives)

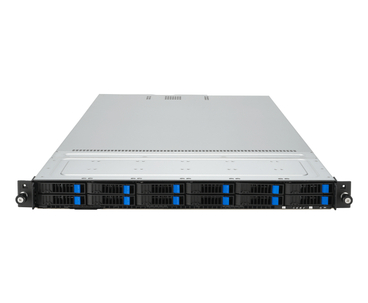

Drive Bays

12 x 2.5" hot-swap bay
2 x M.2 slot

System Fan

9

Networking

4 x1Gbe(Intel I350-AM4) RJ45 port or
2 x 10Gbe(Intel X710-AT2) RJ45 port

Graphic

Aspeed AST2600 64MB

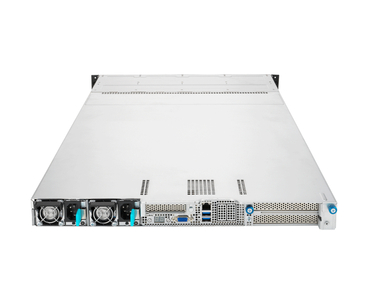

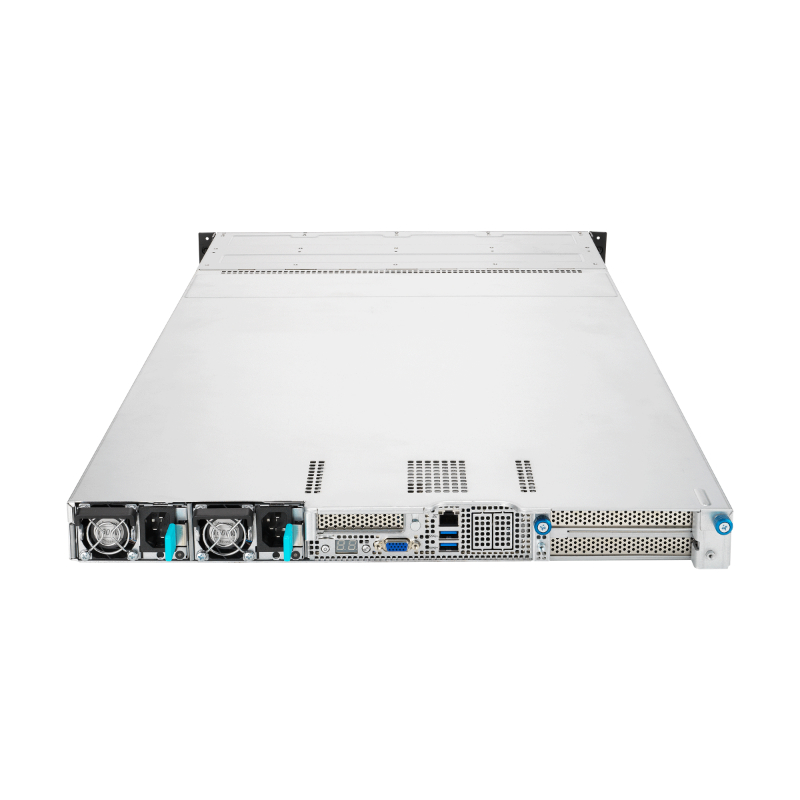

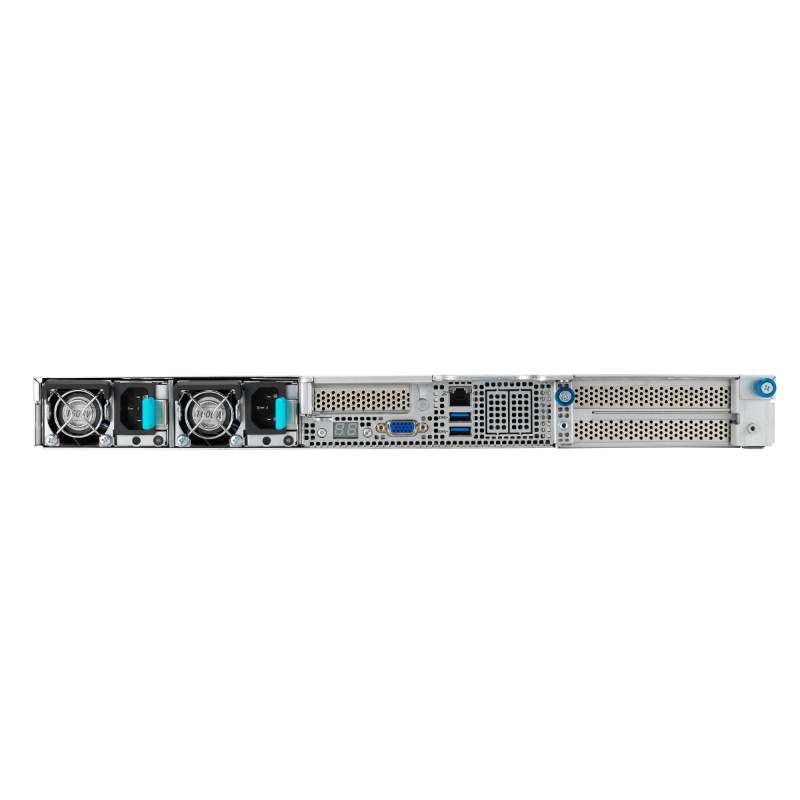

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)

Switch/LED

Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)

Dimensions

842.5mm x 439.5mm x 44mm

Form Factor

1U

Weight

22.56kg

Power Supply

1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply

CPU Heatsink/ Cooler

Standard/ EVAC Heatsink
